深圳市华正源电子有限公司

深圳市华正源电子有限公司

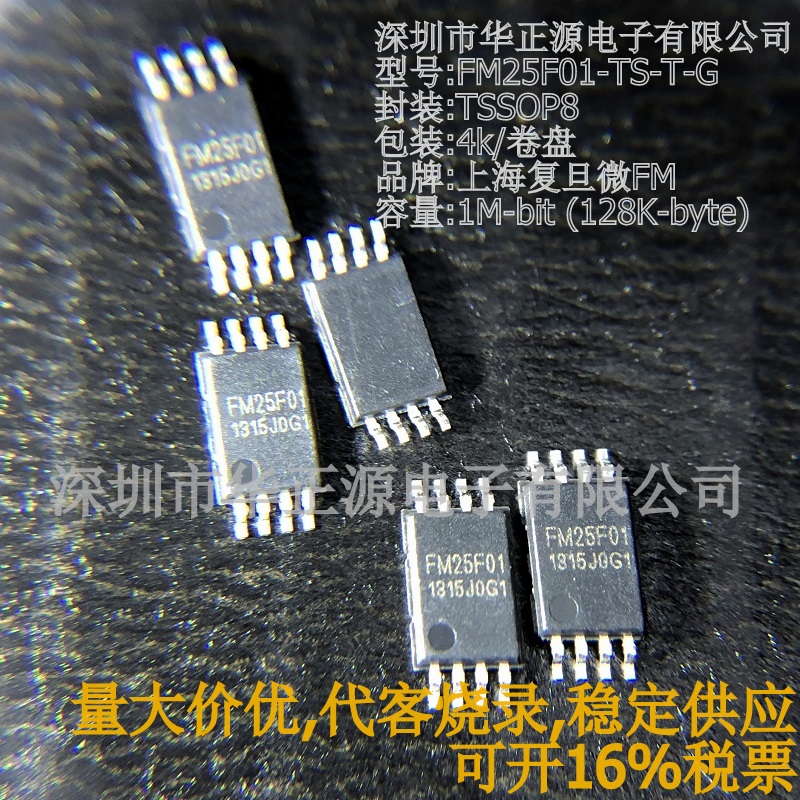

型号:FM25F01-TS-T-G
封装:TSSOP8
包装:4k/卷盘
品牌:上海复旦微FM
容量:1M-bit (128K-byte)

量大价优,代客烧录,稳定供应
                       可开16%税票

FM25F01-TS-T-G
1M-BIT SERIAL FLASH MEMORY

1. Description FM25F01-TS-T-G
The FM25F01-TS-T-G is a 1M-bit (128K-byte) Serial Flash
memory,  with  advanced  write  protection
mechanisms. The FM25F01-TS-T-G supports the standard
Serial Peripheral Interface (SPI), and a high
performance Dual output as well as Dual I/O.
The FM25F01-TS-T-G can be programmed 1 to 256 bytes at
a time, using the Page Program instruction. It is
designed to allow either single Sector/Block at a
time or full chip erase operation. The FM25F01-TS-T-G
can be configured to protect part of the memory as
the software protected mode. The device can
sustain a minimum of 100K program/erase cycles on
each sector or block.
2. Features FM25F01-TS-T-G
---1Mbit of Flash memory
– 32 uniform sectors with 4K-byte each
– 2 uniform blocks with 64K-byte each
– 4 uniform blocks with 32K-byte each
– 256 bytes per programmable page
---Wide Operation Range
– 2.7V~3.6V single voltage supply
– Industrial temperature range
---Serial Interface
– Standard SPI: CLK, CS#, DI, DO, WP#
– Dual SPI: CLK, CS#, DQ 0 , DQ 1 , WP#
– Continuous READ mode support
---High Performance
– Max FAST_READ clock frequency: 100MHz
– Max READ clock frequency: 50MHz
– Typical page program time: 1.5ms
– Typical sector erase time: 90ms
– Typical block erase time: 500ms
– Typical chip erase time: 1.5s
---Low Power Consumption
– Typical standby current: 1μA
---Security
– Software and hardware write protection
– Lockable 256-Byte OTP security sectors
– Low Voltage Write Inhibit
– 64-Bit Unique ID for each device
---High Reliability
– Endurance: 100,000 program/erase cycles
– Data retention: 20 years
---Green Package

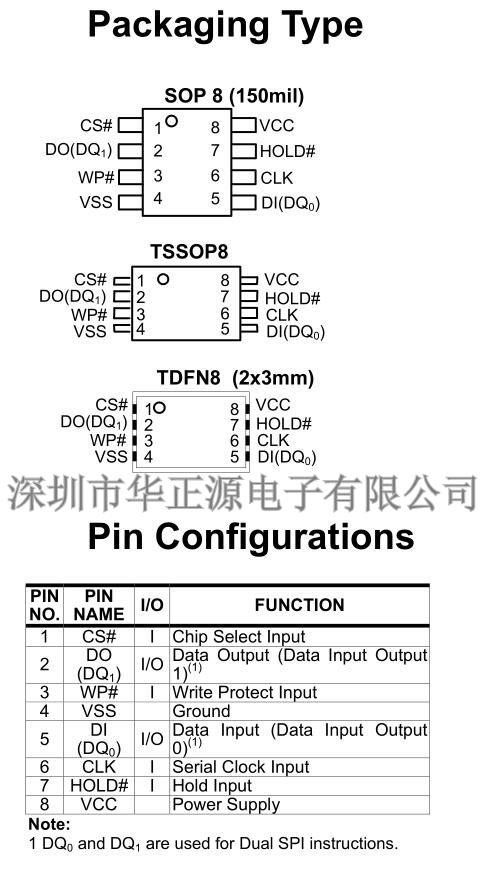

–FM25F01 8-pin SOP (150mil)
–FM25F01 8-pin TSSOP
–FM25F018-pin TDFN (2x3mm)
– All Packages are RoHS Compliant and Halogen-free
