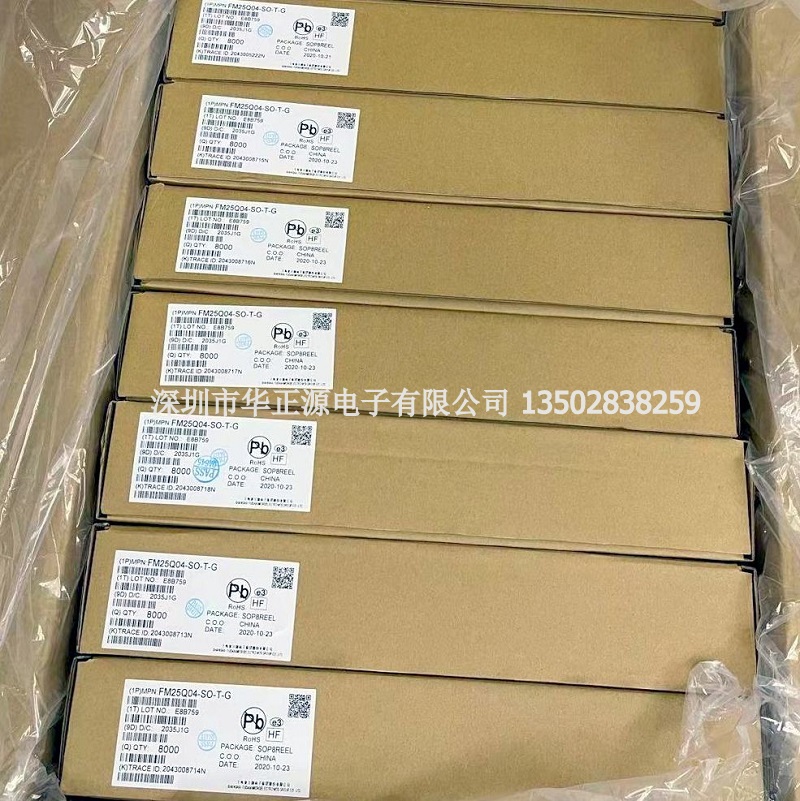

型号:FM25Q04-SO-U-G

封装:SOP8

包装:100个/管

品牌:上海复旦微FM

容量:4M-bit (512K-byte)

量大价优,代客烧录,稳定供应

可开票

FM25Q04-SO-U-G/FM25Q04-TS-T-G

4M-BIT SERIAL FLASH MEMORY

1. Description

The FM25Q04-SO-U-G/FM25Q04-TS-T-G is a 4M-bit (512K-byte) Serial Flash

memory,  with  advanced  write  protection

mechanisms. The FM25Q04-SO-U-G/FM25Q04-TS-T-G supports the standard

Serial Peripheral Interface (SPI), Dual/Quad I/O as

well as 2-clock instruction cycle Quad Peripheral

Interface (QPI). They are ideal for code shadowing to

RAM, executing code directly from Dual/Quad SPI

(XIP) and storing voice, text and data.

The FM25Q04-SO-U-G/FM25Q04-TS-T-G can be programmed 1 to 256 bytes

at a time, using the Page Program instruction. It is

designed to allow either single Sector/Block at a

time or full chip erase operation. The FM25Q04-SO-U-G/FM25Q04-TS-T-G

can be configured to protect part of the memory as

the software protected mode. The device can

sustain a minimum of 100K program/erase cycles on

each sector or block.

2. Features FM25Q04-SO-U-G/FM25Q04-TS-T-G

?4Mbit of Flash memory FM25Q04-SO-U-G/FM25Q04-TS-T-G

– 128 uniform sectors with 4K-byte each

– 8 uniform blocks with 64K-byte each

– 16 uniform blocks with 32K-byte each

– 256 bytes per programmable page

?Wide Operation Range FM25Q04-SO-U-G/FM25Q04-TS-T-G

– 2.3V~3.6V single voltage supply

– Industrial temperature range

?Serial Interface FM25Q04-SO-U-G/FM25Q04-TS-T-G

– Standard SPI: CLK, CS#, DI, DO, WP#

– Dual SPI: CLK, CS#, DQ 0 , DQ 1 , WP#

– Quad SPI: CLK, CS#, DQ 0 , DQ 1 , DQ 2 , DQ 3

– QPI: CLK, CS#, DQ 0 , DQ 1 , DQ 2 , DQ 3

– Continuous READ mode support

– Allow true XIP (execute in place) operation

?High Performance FM25Q04-SO-U-G/FM25Q04-TS-T-G

– Max FAST_READ clock frequency: 104MHz

– Dual I/O Data transfer up to 208Mbits/s

– Quad I/O I/O Data transfer up to 416Mbits/s

– Typical page program time: 1.5ms

– Typical sector erase time: 80ms

– Typical block erase time: 120/150ms

– Typical chip erase time: 1.2s

?Low Power Consumption FM25Q04-SO-U-G/FM25Q04-TS-T-G

– Typical standby current: 1μA FM25Q04-SO-U-G/FM25Q04-TS-T-G

?Security FM25Q04-SO-U-G/FM25Q04-TS-T-G

– Software and hardware write protection

– Lockable 2X512-Byte OTP security sectors

– 64-Bit Unique ID for each device (1)

– Discoverable Parameters (SFDP) Register

?High Reliability FM25Q04-SO-U-G/FM25Q04-TS-T-G

– Endurance: 100,000 program/erase cycles

– Data retention: 20 years

?Green Package FM25Q04-SO-U-G/FM25Q04-TS-T-G

– 8-pin SOP (150mil)

– 8-pin SOP (208mil)

– 8-pin TSSOP8

– 8-pin TDFN (2×3mm)

– All Packages are RoHS Compliant and Halogen-

free

Note 1.This feature is available upon special order.

Please contact  Shanghai Fudan Microelectronics Group

Co., Ltd for details.
