型号:FM25Q04-TS-T-G
封装:TSSOP8
包装:4k/卷盘
品牌:上海复旦微FM
容量:4M-bit (512K-byte)

量大价优,代客烧录,稳定供应
                       可开税票
兼容P25Q40H-SSH-IT

FM25Q04-SO-U-G/FM25Q04-TS-T-G
4M-BIT SERIAL FLASH MEMORY

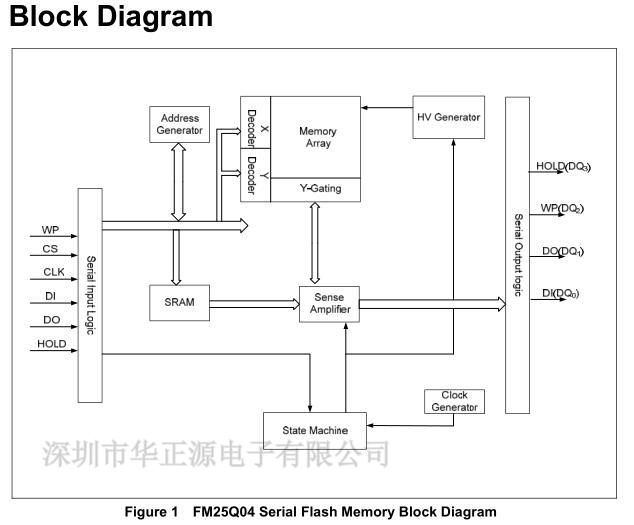

1. Description
   The FM25Q04-SO-U-G/FM25Q04-TS-T-G is a 4M-bit (512K-byte) Serial Flash
   memory,  with  advanced  write  protection
   mechanisms. The FM25Q04-SO-U-G/FM25Q04-TS-T-G supports the standard
   Serial Peripheral Interface (SPI), Dual/Quad I/O as
   well as 2-clock instruction cycle Quad Peripheral
   Interface (QPI). They are ideal for code shadowing to
   RAM, executing code directly from Dual/Quad SPI
   (XIP) and storing voice, text and data.
   The FM25Q04-SO-U-G/FM25Q04-TS-T-G can be programmed 1 to 256 bytes
   at a time, using the Page Program instruction. It is
   designed to allow either single Sector/Block at a
   time or full chip erase operation. The FM25Q04-SO-U-G/FM25Q04-TS-T-G
   can be configured to protect part of the memory as
   the software protected mode. The device can
   sustain a minimum of 100K program/erase cycles on
   each sector or block.
   2. Features FM25Q04-SO-U-G/FM25Q04-TS-T-G
   ?4Mbit of Flash memory FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – 128 uniform sectors with 4K-byte each
   – 8 uniform blocks with 64K-byte each
   – 16 uniform blocks with 32K-byte each
   – 256 bytes per programmable page
   ?Wide Operation Range FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – 2.3V~3.6V single voltage supply
   – Industrial temperature range
   ?Serial Interface FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – Standard SPI: CLK, CS#, DI, DO, WP#
   – Dual SPI: CLK, CS#, DQ 0 , DQ 1 , WP#
   – Quad SPI: CLK, CS#, DQ 0 , DQ 1 , DQ 2 , DQ 3
   – QPI: CLK, CS#, DQ 0 , DQ 1 , DQ 2 , DQ 3
   – Continuous READ mode support
   – Allow true XIP (execute in place) operation
   ?High Performance FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – Max FAST_READ clock frequency: 104MHz
   – Dual I/O Data transfer up to 208Mbits/s
   – Quad I/O I/O Data transfer up to 416Mbits/s
   – Typical page program time: 1.5ms
   – Typical sector erase time: 80ms
   – Typical block erase time: 120/150ms
   – Typical chip erase time: 1.2s
   ?Low Power Consumption FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – Typical standby current: 1μA FM25Q04-SO-U-G/FM25Q04-TS-T-G
   ?Security FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – Software and hardware write protection
   – Lockable 2X512-Byte OTP security sectors
   – 64-Bit Unique ID for each device (1)
   – Discoverable Parameters (SFDP) Register
   ?High Reliability FM25Q04-SO-U-G/FM25Q04-TS-T-G
   – Endurance: 100,000 program/erase cycles
   – Data retention: 20 years
   ?Green Package FM25Q04-SO-U-G/FM25Q04-TS-T-G

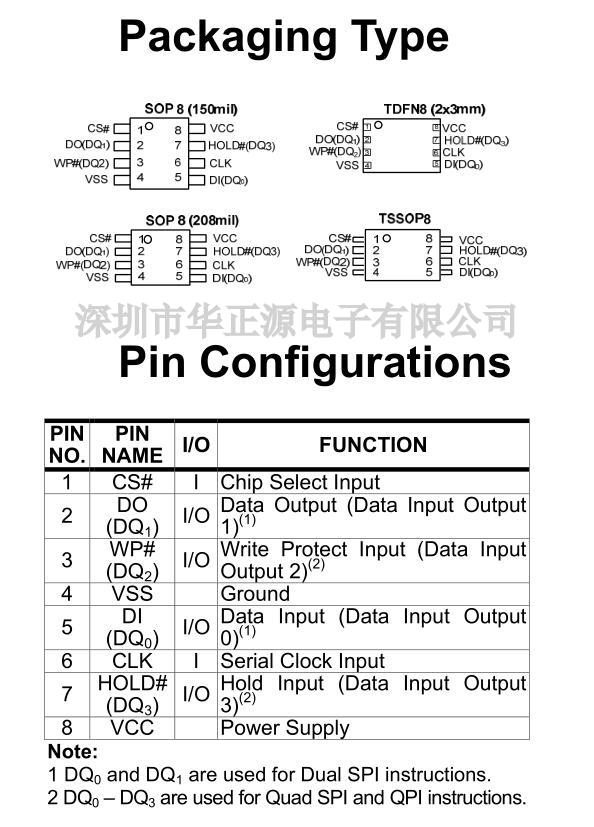

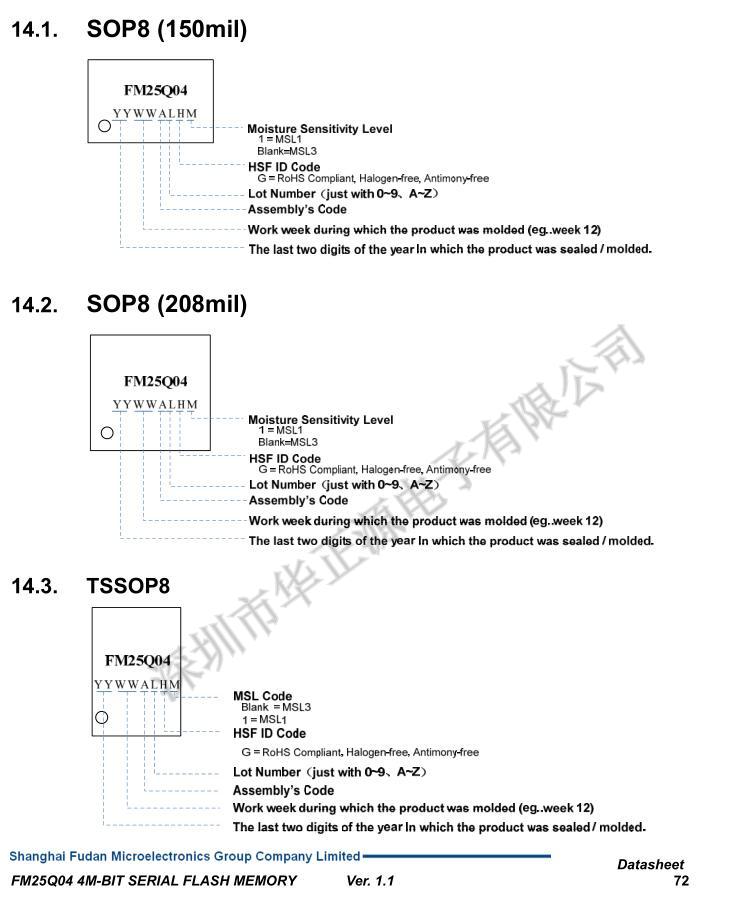

   – 8-pin SOP (150mil)
   – 8-pin SOP (208mil)
   – 8-pin TSSOP8
   – 8-pin TDFN (2×3mm)
   – All Packages are RoHS Compliant and Halogen-
   free
   Note 1.This feature is available upon special order.
   Please contact  Shanghai Fudan Microelectronics Group
   Co., Ltd for details.
