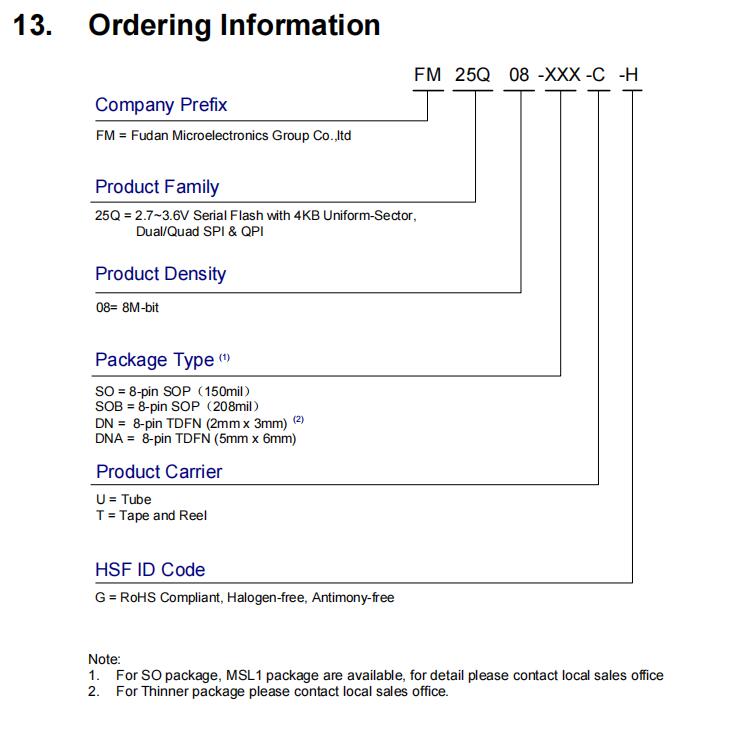

FM25Q08-SOB-T-G(SOP8 208mil)
8M-BIT SERIAL FLASH MEMORY

1.Description
The FM25Q08 is a 8M-bit (1024K-byte)Serial Flashmemory，withadvancedwriteprotection
mechanisms. The FM25og8a..write .. protectionSenial Peripheral Inter face (SPl),DuaVQuad IO as
well as 2-clock instructioncyde Quad Peripherallnterface (QPI).They are ideal for code shadowing toRAM,executing code directly from DuaVQuad SPlIP) and storing voice, text and data.
The FM25Q08 can be programmed 1 to 256 bytesat a time, using the Page Program instruction. It is
designed to allow either singie Sector/ Block at a
time or fullchip eraseeosegte sectorlBlock at acan be configured to protect part of the memory as
the software Drotecteotect part of the memory assustain a minimum of 100K programlerase cycles on
each sector or block.
2 Features
8Mbit of Flash memory
-256 uniform secors with 4K-byte each-16 uniform blocks with 64K-byte each or- 32 uniform blocks with 32K-byte each-256 bytes per programmable pagewide Operation Range
- 2.7V~3.6vsingle voltage supply- lndustrial temperature rangeSerial Interface
- Standard SPI: CLK,CS# ,DI,DO, WP#- Dual SPl: CLK, CS#t , DQo,DQ1, WP#
- Quad SPI: CLK,CS#t, DQo,DQ1, DQ2,DQ3- QPI: CLK,CSt ,DQo,DQ1,DQ2,DQ3
- Continuous READ mode support
- Program/Erase Suspend and Resume support- Allow true XIP(execute in place) operation
High Performance
- Max FAST_READ clock frequency: 104MHz- Max READ clock frequency:50MHz
- Typical page program time: 1 .5ms- Typical sector erase time: 90ms- Typical block erase time: 500ms- Typical chip erase time: 8s
Low Power Consumption- Typical standby current: 1uASecurity

- Software and hardware write protection- Lockable 4X256-Byte OTP security sectors-64-Bit Unique lD for each device(1)
High Reliability
- Endurance: 100,000 program/erase cycles- Data retention: 20 years
Green Package
- 8-pin SOP(150mil)- 8-pin SoP(208mil)- 8-pin TDFN(2×3mm)- 8-pin TDFN(5×6mm)
-Ali Packages are RoHS Compliant and Halogen-
free
Note 1.This feature is available upon special order.Please contact Shanghai Fudan Microelectronics GroupCo., Ltd for details.
