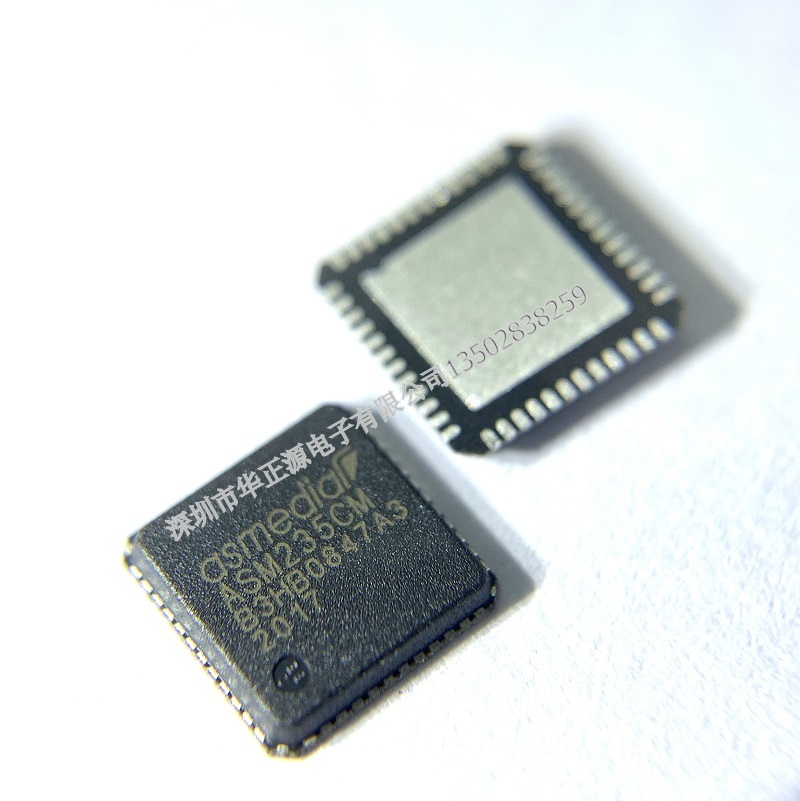

型号:ASM235CM
封装QFN48

@General Description
Engaged in Universal Serial Bus I/O solutions and storage application developments, ASMedia Technology is committed on expanding product portfolio with introducing a new generation of USB 3.1 to SATA 6Gbps bridge solution for USB Type-C storage application.
ASM235CM is the latest generation of ASMedia’s single chip solution, bridging the USB3.1 to Serial ATA host interface with highly integrated SuperSpeedPlus, SuperSpeed, High Speed, SATA 1.5/3.0/6.0 Gbps ASMedia self-designed PHYs as well as built-in CC logic circuit enabling reversible USB cable orientation and direction. Along with excellent compatibility with USB3.1 hosts and SATA devices, ASM235CM utilizes advanced process technology to optimize the chip power consumption.
Customers can easily enhance their storage device performance with ASM235CM since it also integrates an 8-bit micro-processor and embedded RAM to provide a cutting edge solution in USB to SATA device enclosure market.ASM235CM

@. Features ASM235CM
      **ASM235CM    Compliant with USB3.1 Specification Revision 1.0
      **ASM235CM    Compliant with Type-C Specification Revision 1.1
      **ASM235CM    Compliant with USB Specification Revision 2.0
      **ASM235CM    Support USB Super-Speed Plus, USB Super-Speed, High-Speed and Full-Speed Operation
      **ASM235CM    Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3
      **ASM235CM    Support USB Attached SCSI Protocol Specification Revision 1.0
      **ASM235CM    Compliant with Serial ATA Specification Revision 3.2
      **ASM235CM    Serial ATA bus up to 6Gbps Signal bandwidth
      **ASM235CM    Support Spread Spectrum Control of USB3.0 and SATA interface to improve the EMI performance
      **ASM235CM    Support ATA/ATAPI Packet Command Set
      **ASM235CM    Support ATA/ATAPI LBA48 addressing mode(28-bit LBA SATA devices are not supported due to OS limitations)
      **ASM235CM    Integrated 8-bit micro-processor with embedded program RAM and ROM
      **ASM235CM    Support SPI NVRAM for Vender Specific Application of USB Device Controller
      **ASM235CM    Support multi-GPIO pins
      **ASM235CM    Support programmable PWMs
      **ASM235CM    Support 25 MHz with external crystal mode
      **ASM235CM    Integrated two internal voltage regulator for IO power and Core

@Package Type ASM235CM
      **ASM235CM    Green Package 6x6 QFN 48L (Pb-free)
